TOSHIBA

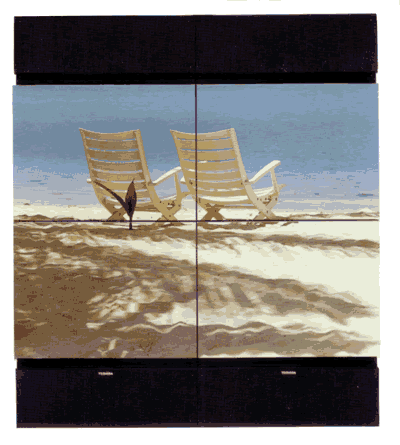

Video Wall Projection System: 5000 series

Specifications

Models
P5031VU/P5032VU
P5031VE/P5032VE
P5031U/P5032U
P5031E/P5032E
Type
50" Projection Unit
Display Tube
Three 7" Fine CRTs (R/G/B)
Input Frequency
NTSC: fH=15.75kHz, fv+60Hz
PAL: fH=15.63kHz, fv=50Hz
(P5031VU/P5032VU)
VGA: fH+15/31.5 kHz, fv=40-150Hz (P5031VE/P5032VE)
NTSC: fH+15.75kHz, fv=60Hz
PAL: fH+15.63kHz, fs
Resolution: H
800 lines or more
Resolution: V
350 lines or more
Viewing Angle: H
Min. 150 degrees
Viewing Angle: V
Min. 60 degrees
Color Temperature
3 positions (6500K, 3200K and user-defined)
Narrow Screen Frame
2.5mm (top, bottom, left and right)
Loading Casters
(P5032VU) (P5032VE)
(P5032U)(P5032E)
System Bus Interface
Input /Output DIN 5-pinX2
Operating Temperature
5-35 degrees C (41-95 degrees F)
Power Supply

AC 100-240V 50/60Hz

(P5031VU/P5032VU, P5031E/P5032VE)

AC 100-240V 50/60hz (P5032U)

AC 220-240V 50/60Hz (p5031E/P5032E)

Power Consumption
290W
260W
Built-in Signal Generator
Crosshair, crosshatch: sparse/dense
Input
Video (BNC), Y/C (BNC), RGB (D-sub mini 15)
Communication Interface
RS-232C (D-sub25)
Dimensions

1025 (W)X1169.5(H)X665(D)mm

40.4"(W)X46.0"(H)X26.2"(D)

Weight
90kg (198 Ibs)
