TOSHIBA

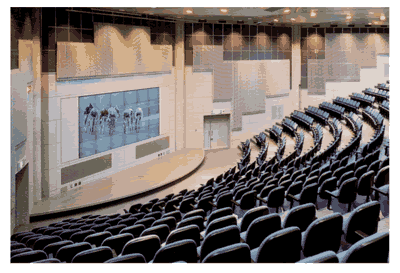

Video Wall Projection System Cube Processor 4000 series

Specifications

Model name
P4130U
P4135U
P4130E
P4130VU
P4135VU
P4130VE
Type
41-inch rear projection
Mono
Collapsible
Mono
Collapsible
Mono
TV System
NTSC/PAL
NTSC/PAL/VGA
Input frequency
NTSC: fH=15.75kHz, fv=60Hz
PAL: fH+15.63kHz
NTSC: fH=15.75, fv=60H
PAL: fH+15.63kHz, fv=50Hz
VGA: fH=f5-35kHz, fv=40-150Hz
Projection Tube
7-inch CRTx3
Screen
Fresnel sheet (inner side), Lenticular sheet (outer side)
Screeen frame
2.5mm (Option: 1.75mm and seamless)
Brightness
2055 cd/m (600 ft-L) (white peak)
Resolution
NTSC/PAL:
H: 800 lines or more
V:350 lines of more
NTSC/PAL:
H: 800 lines or more
V:350 lines of more
VGA: 640 x 480 pixels
Viewing angle
Horizontal: Min 150 degrees, Vertical: Min 60 degrees
System bus interface
Input and output: DIN 5-pin connector x 2
Color temperature
Selection of 6500K, 3200K and User position
Operating temperature
5-35 degrees C
Operating humidity
30 to 70 per cent
Power line voltage (+/- 10%)
AC120V
AC220V-240V
AC120V
AC220-240V
Power line freq
60Hz
50Hz
60Hz
50Hz
Power consumption
260W
300W
Dimensions
846 (W) x 631 (H) x 1,110 (D) mm [33.3(W) x 24.8 (H) x43.7 (D) inch]
Weight
90kg
83kg
90kg
83kg
90kg
Accessories
Control cable (DIN 5-pin cable), Power cable
Safety and EMC
Complies with governemnt regulations
Video input Terminal
BNC x 1
Level
1V (p-p) (75-ohm termination)
Video through-out
BNC x 1
Y/C input Terminal
Y input ... BNC x 1
C input ... BNC x 1
Level
Y signal ... 1 V (p-p) (75-ohm termination)
C signal ... 0.286V (p-p) (75-ohm termination)
RGB input Terminal
D-sub 15-pin (female) x 1
Level
Analog RGB signal ... 0.7V (p-p) (75-ohm termination)
Composite sync ... 0.3V (p-p)
(75-ohm termination)
H/C sync ... TTl level, negative, 10k-ohm
V sync ... TTl, negative, 10k-ohm
Composite sync ... 0.3V (p-p), (75-ohm)
Built-in signal operator
Cross, Cross hatch
Remote control
Wired
Communications interface
RS-232C: D-sub 25-pin (female) x 1
Baud rate: 1.2k, 2.4k, 4.8k, 9.6k baud
