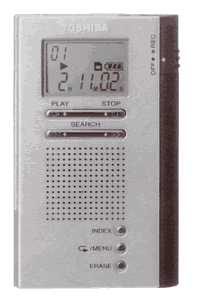

| Introducing
a business-card sized digital recorder with "SmartMedia"
memory card |
| |
Simplicity
itself. One touch record and playback. A "SmartMedia"
removeable memory for endless recording. A choice of adapters for
fast transfers of all your records to a personal computer. Compact,
versatile and ultra-reliable, the DMR-SX1 is your record of everything
from flashes of inspiration to that important business meeting. |
|
 |
Digital
IC recording
An IC with the latest in voice compression capabillities assures
clear sound, even in long recordings.
|
|
| |

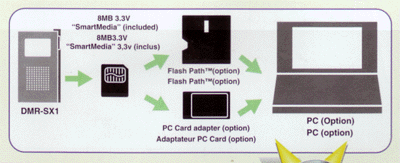

"SmartMedia"
SmartMedia support lets you record ... forever. Just change the
memory card. And upload yu recordings to your PC with a choice of
Flash Path or PC Card adapters. (60 minutes of records in approx.
few minutes for Flash Path or 5 seconds for the PC card.)
|
|
| |
High
quality microphone
One-touch recording via an integrated omni-directional pop-up mike. |
 |
 |
Repeat
Repeat...and repeat..and Repeat Playback is a great tool for transcription,
language practice, dictation or sales promotions. |
|
| |
Earphone
A twin earphone adds to ease-of-listening of played back mono sound.
The 3.5mm diameter earphone jack also supports connection to external
speakers. |
 |
| |
Sound
Filter (Sound Selector)
Remove background noise with the Sound Filter. Eliminate distracting
background sounds or the noise from air-conditioners to assure a
clear voice recording. |
|
 |
Built-in
speaker
A built-in speaker provides instant playback with no need for the
earphones. |
|
| |
Directional
mike
When you want the best in recorded quality, the omni-directional
mike can be replaced with a directional mike or tie-pin mike. |
 |
 |
Index
Add an Index mark to recordings as you make them. simplifying
searches during playback and making repeat playback easier.
|
|
| |
Hold
Hold prevents accidental switching on or off when the recorder is
carried in a pocket or bag. |
 |
| |
Display
A large display clearly shows current operation. Record, Play,
Delete and Hold icons allow quick, at-a-glance reference. Alarm,
clock and control beep tones can all be set from on-screen menus.
|
|
| |

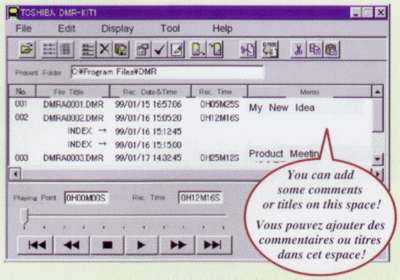

Add
comments or titles to recordings uploaded to a PC.
Once
you have uploaded voice data to your PC, use our dedicated software
to display your recodings, play these back or add comments. Create
instant voice mail by adding voice data to e-mail as a WAV file
(e-mail software not included).
|
|
| Specifications |
| |
| Model
name |
DMR-SX1 |
| Memory
capacity |
8
MB "SmartMedia" card included |
| Maximum
recording time |
132
minutes |
| Maximum
recording messages |
199 |
| Recording
media |
"SmartMedia"
card (Flash memory card) |
| Microphone |
Built-in
condenser mike (monoaural) |
| Mike
in jack |
3.5mm
diameter monoaural type |
| Earphone
jack |
2.5mm
diameter stereo type |
| Speaker |
28mm |
| Repeat
playback |
Yes |
| Hold
Switch |
Yes |
| Index
(Recording) |
Yes |
| Index
(Playback) |
Yes |
| Index
retraction |
Yes |
| Sound
Filter |
Yes |
| Menu
Setting |
Yes |
| Clock
Set |
Yes |
| Alarm
Set |
Yes |
| Beep
Set |
Yes |
| All
Erase |
Yes |
| "SmartMedia"
Format |
Yes |
| Dimensions |
93.5
x 57 x 16.5 (mm) |
| Weight |
Main
unit only: approx. 78g (102g with batteries) |
| Batteries
|
Two
AAA (LR03) batteries |
| Battery
life |
Approx
14 hours recording
Approx
10 hours playback with earphone
Approx
10 hours playback with speaker
|
|
|
| Accessories |
|
|
Recording
time capability for "Smart Media" (3.3V)
| 2MB |
4MB |
8MB |
16MB |
| 32
min |
66
min |
132
min |
256
min |
Twin
earphone (2.5 mm – diameter stereo type)
DMR
Kit 1 (PC application soft) included
|
 |
| Option |
| |
Flash
Path PDR-FLP1 (option)
IBM
PC/AT Windows
95, Windows 98
|
 |
