JVC

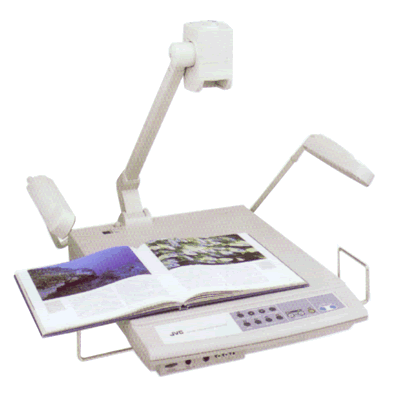

Visual Presenter AV-P750



Easy to Use, Yet Delivers Seamless, Professional Presentations


An easy to set up and use, full-featured Visual Presenter. With comprehensive I/O terminals, genlock and RS-232C interface.
• 12X Power Zoom Lens
• 5-Position Arm
• Full Flat Stage
• Book Support
• Camera Panning
• 35mm Slide Holder


Wide Range of Applications


• School Lessons
• Study Seminar
• Major Conference Seminars
• Video Conferencing
• Image Capturing and Editing


Specifications

General
Power requirements AC 220 – 240V, 50/60 Hz (AV-P750E)
AC 100 – 120V, 50/60 Hz (AV-P750U)
Power consumption 0.35A (AV-P750E)
30W (AV-P750U)
Dimensions (W x H x D)

740 x 590 x 690mm (open)
450 x 225 x 650mm (closed)
29-1/16 x 23-1/4 x 27-1/8 inches (open)
17-3/4 x 8-7/8 x 25-5/8 inches (closed)

Weight 10kg (22.1 lbs)

Optical
Lens F1.6 f=4.0 – 48mm (12x)
Shooting area 350 x 260mm max. (100% scan)
29 x 22mm min
13–13/16 x 10–1/4 inches max. (100% scan)
1–3/16 x 7/8 inches min.
Focal distance 90mm (3-9/16 inches) above the platform surface (with close-up lens)
Infinity – 1.0m (3.3 ft) (without close-up lens)
Zoom Motorized (user control)
Focus Auto/Motorized
Iris Auto (with-tuning) / Manual
Lighting
Side lamp 2 x 6W (inverter lighting)
Backlight panel 2 x 6W (inverter lighting, area size is A4 horizontal)
Camera Head
Television system PAL (AV-P750E) / NTSC (AV-P750U)
Image pickup device 1/4" Interline-transfer CCD
Number of pixels (effective) 737 horizontal x 575 vertical (AV-P750E)
771 horizontal x 492 vertical (AV-P750U)
Synchronization system Internal/external auto-select
Horizontal Resolution 450 TV lines (Y signal)
Vertical Resolution More than 400 TV lines (AV-P750E)
More than 350 TV lines (AV-P750U)
S/N ratio More than 46 dB
Electronic shutter 1/50, 1/120 (AV-P750E)
1/60, 1/100 (AV-P750U)
White Balance Full-auto/One-push set/Manual
ACG ON, OFF
Negative/Positive inversion Yes
B/W Color selection Yes
Input select Camera/AV1/AV2

Input/Output
Input Terminals

Composite video

RCA jack x 2 (1 V(p-p), 75 ohms)

S-Video

Mini DIN 4-pin x 2
(Y: 1 V(p-p), 75 ohms)

Audio (stereo)

RCA jack x 2 pairs
(-10 dBs, 10k ohms or more)

Microphone (mono)

Phone jack x 1 (-60 dBs, 600 ohms)

Extermal sync input

RCA jack x 1 (1 V(p-p), 75 ohms)
Output terminals

Composite video/monitor

RCA jack x 2 (1 V(p-p), 75 ohms)
S-Video
Mini DIN 4-pin x 1
(Y: 1 V(p-p), 75 ohms
(C: 0.3 V(p-p), 75 ohms) (AV-P750E)
(C: 0.286 V(p-p), 75 ohms) (AV-P750U)
Audio (stereo)
RCA jack x 1 pair
(-10 dBs, 200 ohms)

DC output

DC jack x 1 (DC 12 V) for LCD monitor
Control Terminals

External Remote Control

DSUB 9P x 1 (RS-232C)
Environmental Conditions
Temperature +41 F – +104 F (+5C – +40C)
Humidity 30%–85%
Accessories
(provided as standard) Video cable (5m) x1
Instruction manual x 1
RS–232C control commands x 1
Main Cord x 1
Optional Accessory
  LCD monitor (AV-Z7)

Price
  S$4,000.00
