TOSHIBA

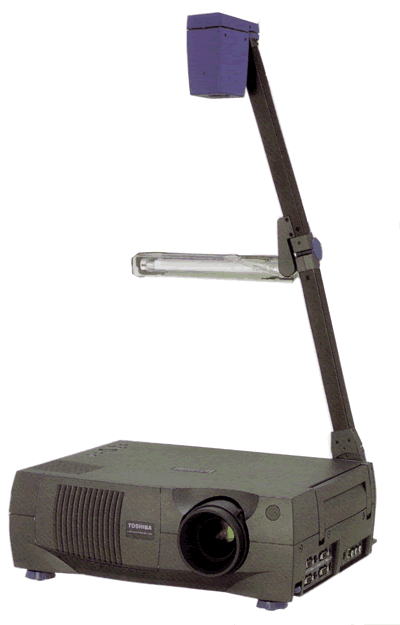

LCD Projector TLP 771



Features


• High brightness and XGA resolution

• A new generation of technology substantially increases brightness and performance

• Screen images with a brightness of 1,800 ANSI lumens are made possible by Toshiba's unique new optical engine.

• The TLP771's have a new 810,000-pixel camera that offers nearly double the resolution of previous models.

The document camera can revolve 360 degrees for video conferencing use.

• The TLP770 & 771's T-FORC II compression chip provides clear and smooth image quality of all resolutions even in SXGA or UXGA mode

• Built in auto-sync capability to recognize and display all resolutions.

• HDTV Ready! With Y, Pb, Pr (DVD or HDTV) input provided.

• Digital ZOOM function for large screen display of special items or details.

• All signals can be resized for full screen image display, regardless of input resolution

• Images can be projected to screens ranging in size from 20 inches to 300 inches


Specifications

Resolution

UXGA (1600x1200 compressed)

SXGA(1280x 1024 compressed)

XGA (1024x768)

SVGA (800x600)

VGA (640x480)

Brightness 1800 ANSI lumens
Projection lens Manual zoom and focus (F2.0-2.5/f=50-70mm)
Image size 22" -300"
Projection distance 2.4 to 36.2 feet (0.7 to 11m)
Lamp 150W UHP
Scanning frequency fh 15.63-93.75kHz.fv 50-85Hz
Audio output Built-in 1.5W monaural speaker
Contrast 300 : 1
Input Terminals

2 RGB : D-sub 15 pins

2 audio for RGB : stereo mini jack

2 video : RCA and S-video (Y.Pb.Pr)

2 audio for video : stereo mini jack

Output terminals

1 RGB : D-sub 15 pins

1audio : stereo mini jack

1 camera video (NTSC/PAL) : RCA pin (TLP771)

Power source 100-240V AC,50/60Hz
Power consumption 255W

External dimensions

(WxHxL)

390x139x309mm

15.4x5.4x15.4 inches

(without foot and lens)

Weight 8.2kg (18.1 Ibs)
Document camera

1/3" CCD 810.000 pixels

Resolution : 1024 (H) 768 9V)lines minimum.

Adjustable focus and zoom

Built-in fluorescent light source

Camera output : NTSC/PAL



Price S$16,000.00
