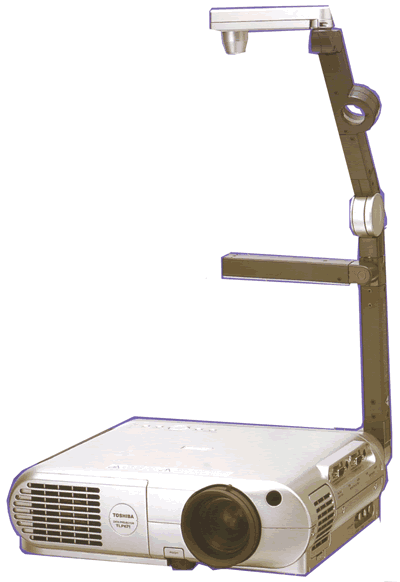

LCD Projector TLP 671



Specifications (Main unit)
Model TLP671
LCD Panel Pixels 786,432 (1024 x 768) x 3
Form Size 0.9 inch TFT, aspect ration 4:3
Projection lens Manual zoom focusing lens F 1.8~2.1, f 36~47 mm (x1.3)
Light source 150 W UHP lamp
Brightness 1300 ANSI lumens
Resolution 1024 x 768 dots
Color reproduction Full color (16.7 million colors)
Contrast 400:1
Image size 23"~250"
Projection distance 3.6 to 33.1 feet (1.1 to 10.1 m)
Compatible scanning frequency Horizontal (kHz) 15~93
Vertical (Hz) 50~85
Input terminal Video 1 line [RCA pin / S terminal (S terminal has priority)]
RGB 1 line [D-sub 15 pin (Color difference signal switching available)]
Audio video•RGB: 1 line each [RCA pin / stereo mini-jack]
Input signal Video signal NTSC, PAL, SECAM
Color difference signal Y/Pb/Pr(HDTV), Y/Cb/Cr(DVD)
RGB signal VGA, SVGA, XGA/SXGA(compression), UXGA(compression)
Output termial RGB 1 line [D-sub 15 pin]
Audio 1 line [Stereo mini-jack]
Control input terminal RS-232C [Mini-DIN]
Built-in speaker 1.0W mono-aural speaker
Zoom-up function 1~4 times, four-step switching available
External dimensions (WxDxH) 318x87x288 mm
12.5x3.4x11.2 in
(w/o foot and lens)
Weight (kg/lbs) 4.4/9.7
Power consumption 235W
Power source 100–240V AC, 50/60Hz
Specifications (document camera) (TLP671)
Image pick-up device 1/3 inch CCD 810k pixels
Resolution 500 TV lines or more (horizontal resolution)
Camera lens F=2.8 f=6.2mm Manual focusing
