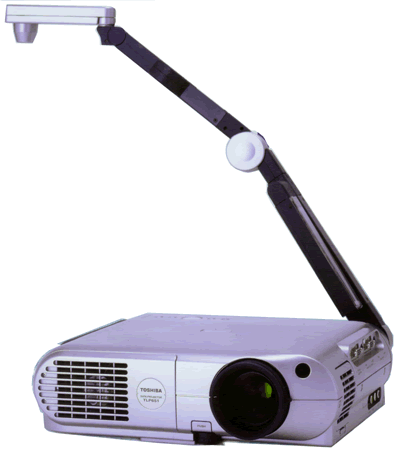

LCD Projector TLP 651



Display 0.9" Polysilicon LCDx3 with micor lens array
Input signals

UXGA (1600x1200 compressed)
SXGA(1280x1024 compresses)


Brightness 1100 ANSI lumens
Projection lens Manual zoom & focus
Image size 22"–250"
Projection distance 3.6 to 32.8 feet (1.1 to 10m)
Lamp 150W UHP
Scanning frequency fH 15–16, 24-93 fv 50–85 Hz
Audio output Built-in 1W monaural speaker
Contrast 300:1
Input terminals 1 RGB : D-sub 15 pins
1 Audio for RGB : stereo minijack
1 video : RCA and S-video (Priority)
1 audio for video : RCA L&R
Output terminals 1 RGB : D-sub mini 15 pipns
1 Audio : stereo mini jack
Power source 100-240V AC, 50/60Hz
Power consumption 235W
External dimensions

12.5x3.4x11.2 inches
(without foot and lens)

Weight 4.4kg (9.7 lbs)
Document camera

1/3" CCD 810,000 pixels

Resolution: 500 TV lines

Adjustable focus lens

Built-in LED


Diagonal screen size Distance between lens & screen Lens height to screen bottom
(in inches) Minimum (Wide) (In meters or feet) Maximum (Tele) (In meters or feet) (in cm or inches)
60 2.4m or 7.8' Maximum (Tele) (In meters or feet) 9cm or 3.6"
100 4.0m or 13.1' 3.0m or 10.0' 15cm or 5.9"
150 6.1m or 19.8' 7.7m or 25.4' 23cm or 9.1"


Price S$12,000.00
