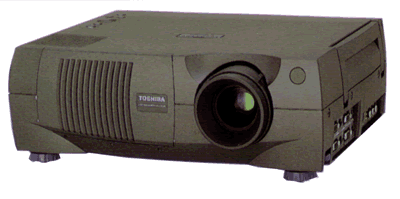

LCD Projector TLP 570


Display 1.3" Polysilicon TFT LCDx3

SXGA (1280x1024 compressed)/XGA (1024x768)/SVGA(800x600)/VGA(640x480)

Brightness 800 ANSI lumens
Projection lens Manual zoom and focus (F2.5-3.0/f+50-70mm)
Image size 22" - 300"
Projection distance 3.6 to 39 feet (1.1 to 12m)
Lamp 120W UHP
Scanning frequency fH15.63 – 91kHz.fv 50–85Hz
Audio output Built-in 1.5 W monoaural speaker
Contrast 1:300 (maximum)
Input terminals 1 RGB : D-sub 15 pins/1 audio for RGB : stereo mini jack/1 video : RCA and S-video (Priority) 1 audio for video : RCA L&R
Output terminals 1 RGB : D-sub mini15 pins/1 audio : stero mini jack/1 camera : RCA pin (TLP571)
Power source 100-240V AC, 50/60Hz
Power consumption 205W
External dimensions (WxHxL) 340x128x290 mm
13.4x5.0x11.5 inches
(without foot and lens)
Weight 6.8 kg (10.5 lbs)
Document camera Not Available
Diagonal screen size Distance between lens & screen Lens height to screen bottom
(in inches) MInimum (Wide) (In meters or feet) Maximum (Tele) (In meters or feet) (In cm or Inches)
60 2.3m or 7.6' 3.1m or 10.2' 14cm or 5.5"
100 3.8m or 12.5' 5.3m or 17.4' 23cm or 9.1"
150 5.7m or 18.7' 8.0m or 26.2' 34cm or 13.4"
