HITACHI

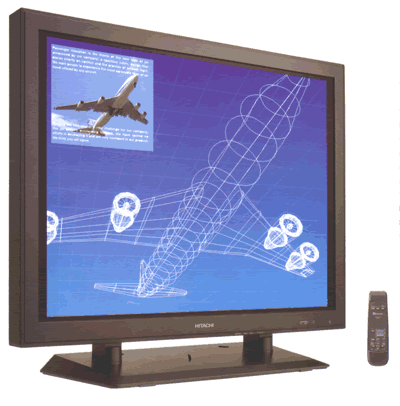

37-Inch High-Definition Plasma Display: CMP307XU

Communication with High Picture Quality


• High-definition XGA Reproduction on a 4:3 large screen
• High-definition and High-Quality Picture Reproduction
• Multi-scanning capability for Wide-Ranging Computer compatibility
• Colour temperature selector white balance adjustment
• Burnout reduction function for improved still pictures
• 160 degree viewing angle for clear images from any position
• Built-in stereo speaker system
• Space-saving unit less than 4 inhes in depth


Possibilities for eye-catching communication
  • Conference room
• Information and guidance boards
• Trade shows
• Storefront displays for banks and securities companies
• TV conference rooms
• Transportation / utility control rooms

Options


• Wall mount ceiling
• Ceiling mount unit


Specifications

Product name 37-Inch High-Definition Color Plasma Display
Model CMP307XU
General Power Supply AC 100 - 120 V
Frequencies 50 / 60 Hz
Power Consumption 390 W (Typical)
Dimensions 34.8" (W) x 26.9" (H) x 3.9" (D)
Weight 65 lbs 9 oz (excluding stand)
Display characteristics Effective display area 29.6" x 22.2"
Aspect ratio

4:3

Number of pixels 1024 (Horizontal) x 768 (Vertical) pixels
Pixel pitch 0.735 (Horizontal) x 0.735 (Vertical) mm
Number of colors (Gray levels) 2.09 million colours (128 gray levels)/16.7 million colors (256 gray levels)
Brightness 150 cd/sq m (typical) at white peak (with front filter, 2.09-million-color mode)
Contrast ratio 400:1 (Typical, no ambient light, 2.09-million-color mode)
Viewing angle More than 160 degrees
Signal input and terminals Video Analog (PC) RGB1 Format / frequency: R, G, B , H, V / fH:24k to 80kHz, fV: 50 to 75 Hz
Level/impedance: R, G, B = 0.7Vp-p/75 ohms
Synchronization: H/V separate sync: TTL, H/V composite sync: TTL, G sync = 0.3Vp-p
Connector: mD-Sub 15P x 1
Analog (PC) RGB2 Format / frequency: R,G,B, H, V/fH: 24k to 80kHz, fV: 50 to 75Hz
Level/impedance: R, G, B = 0.7Vp-p / 75 ohms
Synchronization: H/V separate sync: TTL, H/V composite sync: TTL, G sync: 0.3Vp-p
Connector: BNC x 5
Video 1 (Composite) Format: video or S video (NTSC/PAL/SECAM)
Level / impedance: 1.0 Vp-p / 75 ohms
Synchronization: composite sync. signal
Connector: RCA pin x 3
Video 2 (Component) Format: Y, PB, PR or Y CB, CR
Level/impedance: Y = 1.0V, PB/CP, PR/CR=0.7Vp-p/75 ohms
Synchronization: weighted on Y signal
Connector: RCA pin x 3
Audio 3 inputs Stereo signal supplied with video 2 input and RGB 1 input: L/R 470mV high impedance
Connector: RCA pin (L/R) x 3
Control terminal Connector: D-Sub 8P
Signal output Speaker output 2 W + 2 W (8 ohms) (built-in 3.9 in x 1.2 in speakers x 2)
Controls Switch/Button Main Power switch, Sub Power button
Adjustment button (Input changeover, Adjustment menu, Selection, Sound volume adjustment)
Main adjustment Video signal Contrast, brightness, color, color tone, sharpness
RGB signal Contrast, brightness, display size, vertical position, horizontal position, clock phase
Audio signal Sound volume, balance, high, low, mute
Remote control Infrared remote control provided
Power management ON/OFF control via signal detection
Environmental conditions Temperature 5 - 35 deg
Humidity 20 – 80 % RH (Non-condensation)
Regulations Safety UL1950, CSA C22.2 No 950
EMI FCC class A
Supplied accessories AC Power Cable Cable (L=5ft 11in)
Interface Cable (mD-sub 15P connector L=5ft 11in),
Infrared remote control unit (With batteries, R6P or SUM-3 x 2), Operation Manual



www.hitachi.com
